Visual Comfort logo VISUAL COMFORT... The Electrical & Lighting Design People

VISUAL COMFORT

LT-POWER &
CONTROL PANELS

THE CENTRAL HUB OF A BUILDING'S ELECTRICAL SYSTEM.

Main Power Control Centres Motor Control Centres APFC Panels Lighting & Automation Distribution Panels DG Synchronizing / AMF Industrial Drives EV Chargers
Explore Panels

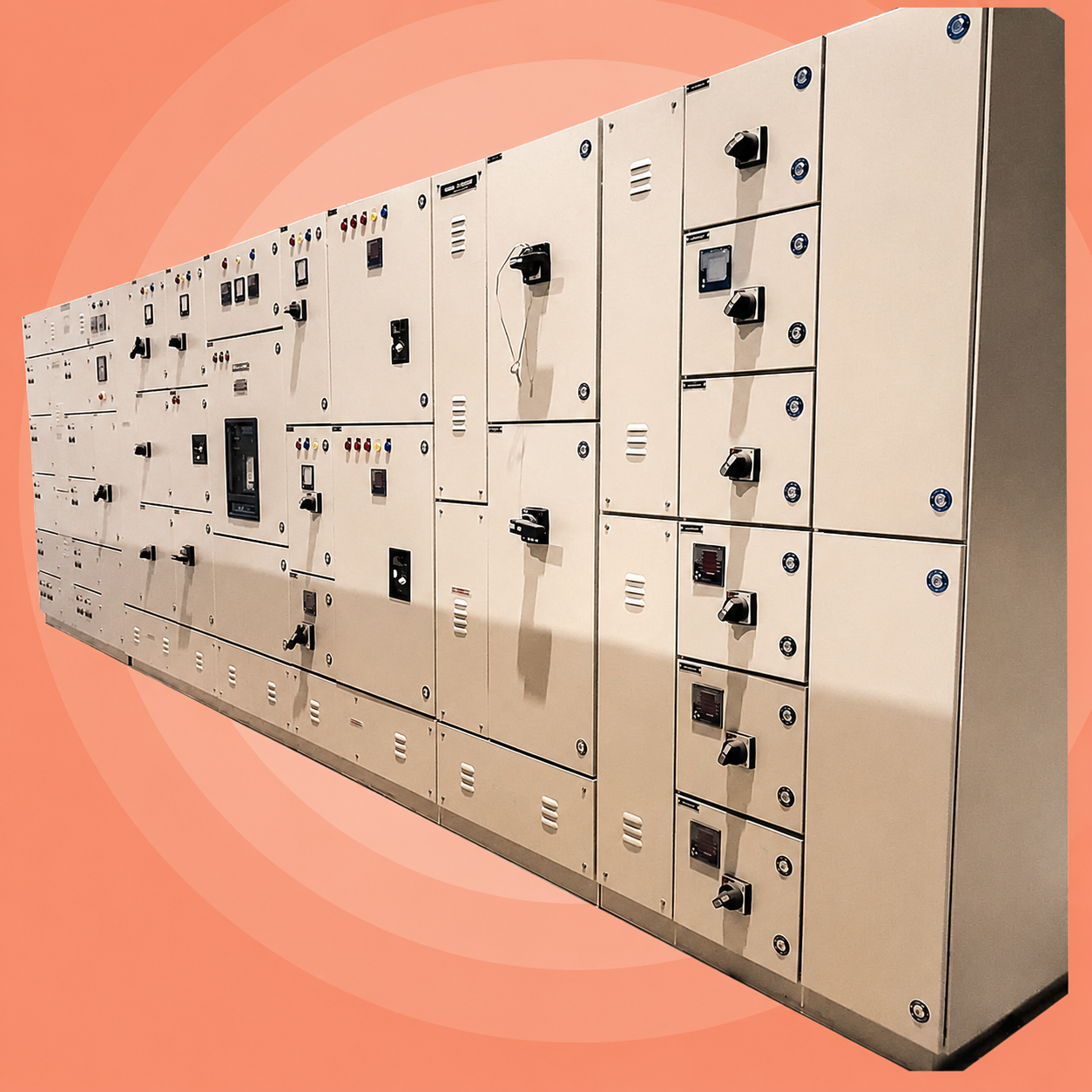

LT power and control panel

THE ELECTRICAL & LIGHTING DESIGN PEOPLE

Power control engineered around your requirements.

We Design and Manufacture Power Control Panels for such requirements with Manual Change Over Switches, Automatic Transfer Switches, Synchronized Bus Couplers, Mechanical/Electrical Interlocking along with various protection techniques for several fault conditions in-built within the Power Panel.

Main Panels are made suitable for 3-Phase 415V, 3-Wire/4-Wire Distribution System with an Insulation Voltage of upto 660V, Ambient Temperature of 45 Deg Centigrade.

All Panels undergo Seven Tank Process and Powder coated in Siemens Grey as required by the Client.

OUR PANEL RANGE

Solutions from power distribution to automation.

The following sections preserve the product categories and technical content presented in the client brochure.

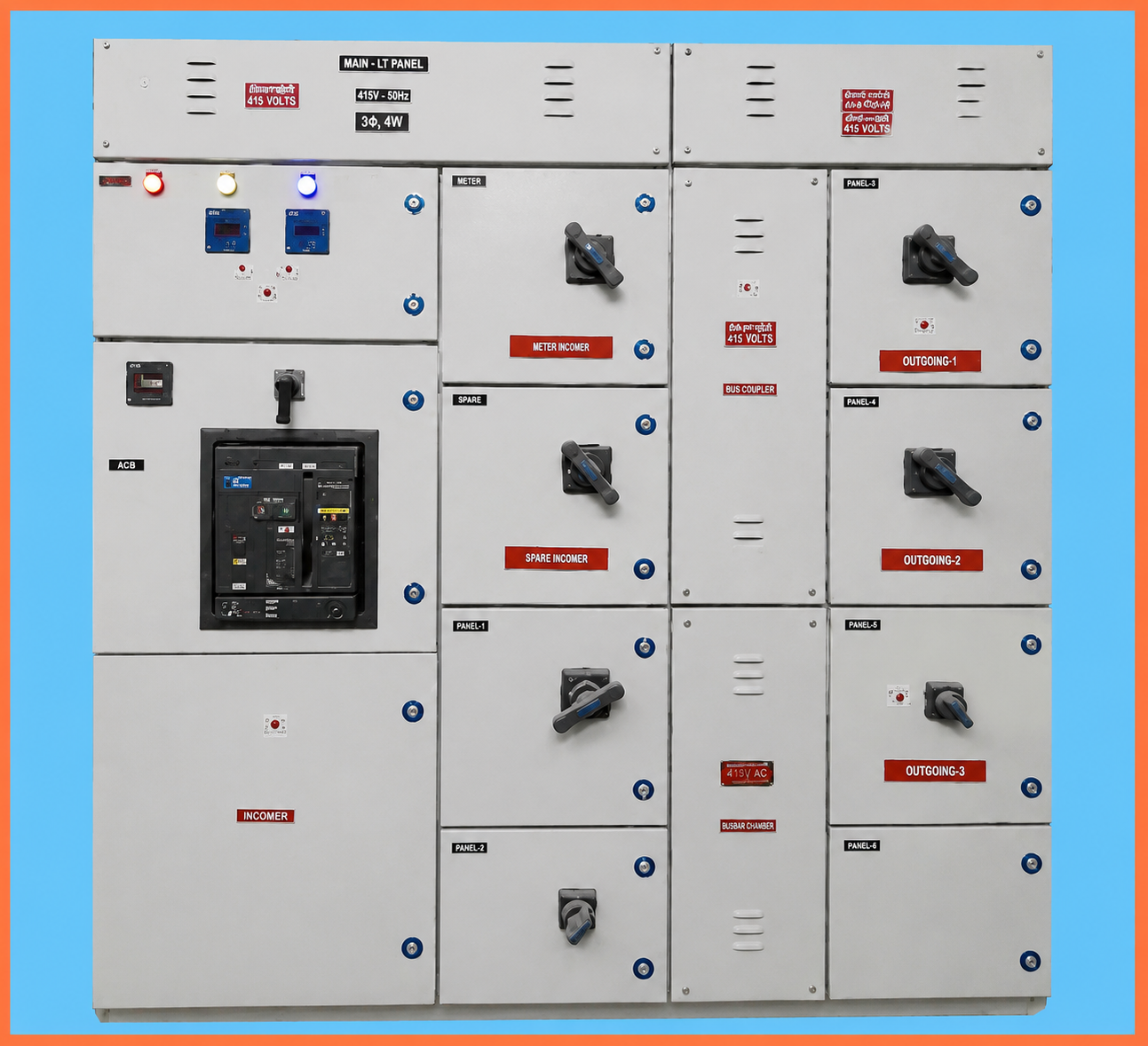

Main panel LT power control centre
01

MAIN PANEL — LT POWER CONTROL CENTRES

  • Every Establishment needs one Main Low Tension Power Control Centre with Multiple Power Sources Viz. DISCOM Electricity Supply, Diesel Generator Sets, Solar Power and Other Alternative Sources.
  • We Design and Manufacture Power Control Panels for such Requirements with Manual Change Over Switches, Automatic Transfer Switches, Synchronized Bus Couplers, Mechanical/Electrical Interlocking alongwith Various Protection Techniques for Several Fault Conditions in-built within the Power Panel.
  • Aluminium/Copper Bus Bars are Designed to accommodate TOP Entry/BOTTOM Entry of Armored cables with well Designed Chambers with adequate Space for the Circuit Breakers, Metering Equipment, Indicators, Open/Closure of Doors and Ventilation.
  • Main Panels are made suitable for 3-Phase 415V, 3-Wire/4-Wire Distribution System with an Insulation Voltage of Upto 660V, Ambient Temperature of 45 Deg Centigrade.
  • All Panels undergo Seven Tank Process and Powder coated in Siemens Grey as Required by the Client.

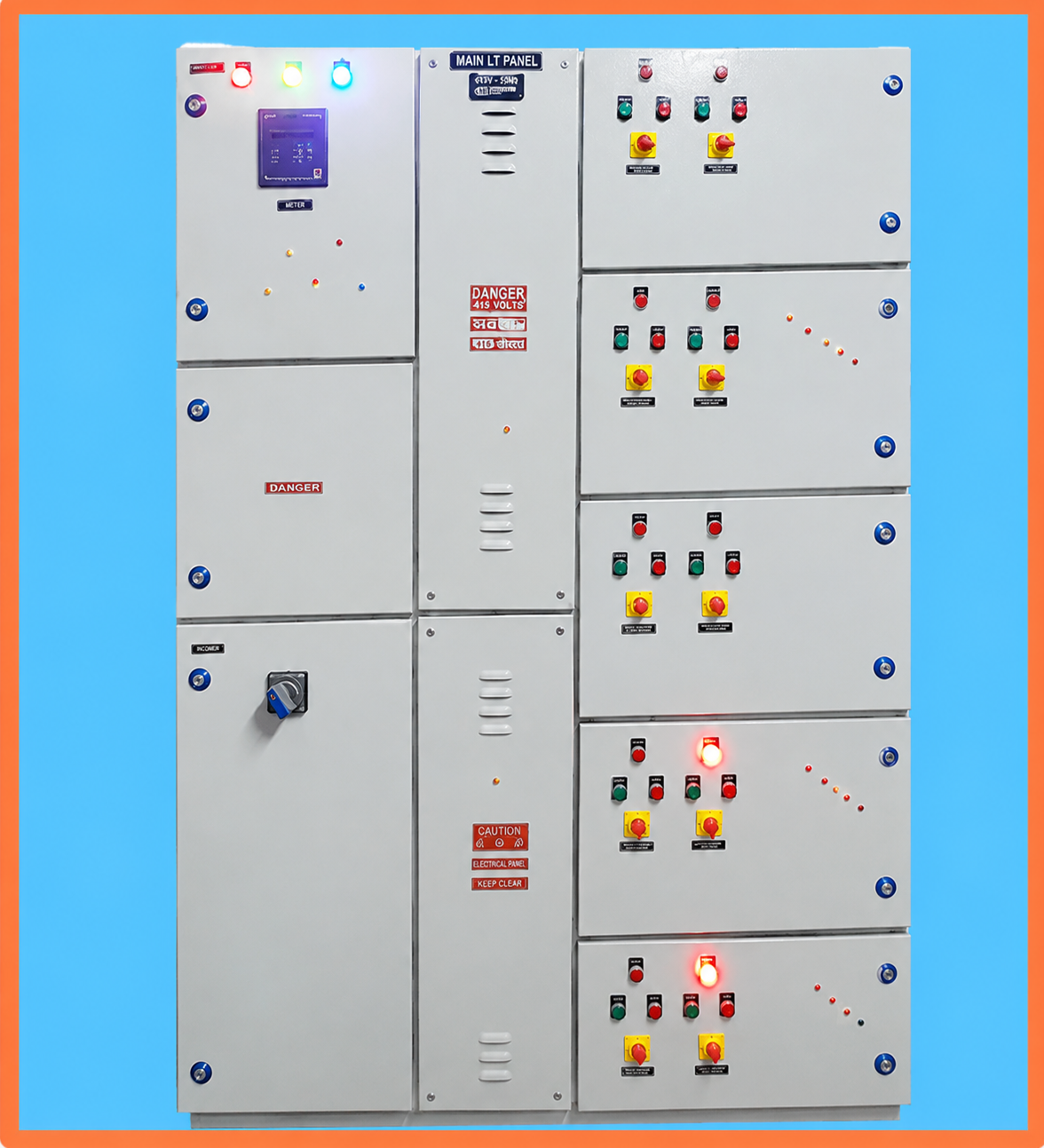

Automatic power factor control capacitor panel
02

AUTOMATIC POWER FACTOR CONTROL (APFC) CAPACITOR PANELS

  • Power Factor Control to reduce Power Bills of DISCOMs and also regulate the Reactive Power Usage is a basic necessity for every Commercial Buildings, Industry, Gated Community, IT Parks, Logistic Parks and also Residential Apartments.
  • We Design & Manufacture Capacitor Panels with Microprocessor Based APFC Relays to Switch On & OFF the In-Built Capacitor Banks thereby ensuring Automatic High Speed Power Factor Correction and maintain p.f. as per required values.
  • Our APFC Panels have unique features of Power Factor Correction with Fast Real Time Transient-Free switching of Capacitor Banks, Preventing damage to sensitive electronic equipment in network. Highly intelligent micro processor based 3 phase P.F. Controller with Dual P.F. Setting and Master Slave modes, LCD Controller is inbuilt with Load Manager with front optical port, Optional pluggable Data Logger, Ethernet, USB, RS485, GSM modem and capacitor protection modules.
  • Our APFC Panels have Extremely long life expectancy, Saves Energy with P.F Control and Harmonic Filtration and are available with Tuned, 7%, 5.6%, 4% or any other Tuning frequency as per customer request. System is available with Contactor switching for non-dynamic and normal loads - Ratings and Dimensions are same as Active Comp System.

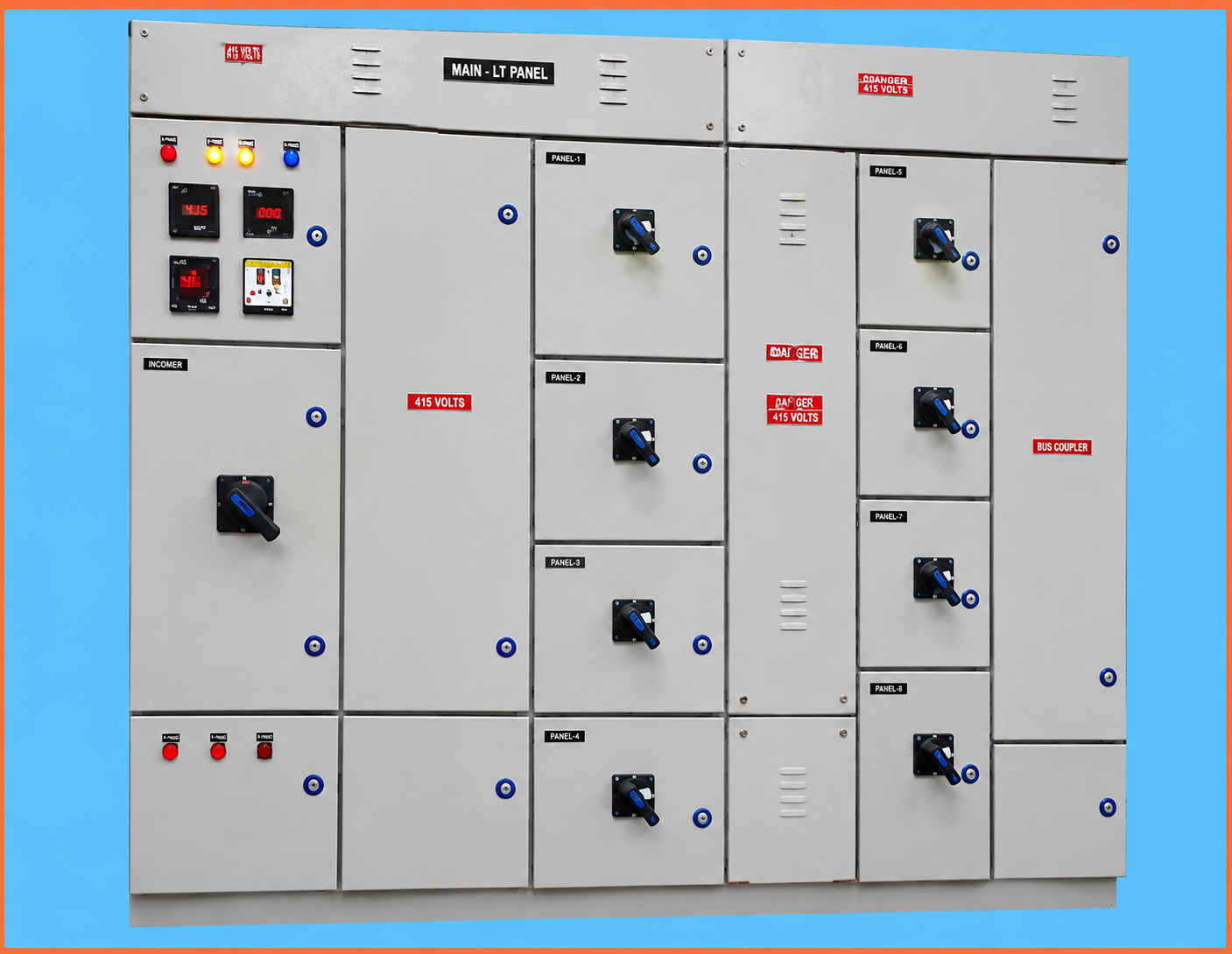

Load distribution panels
03

LOAD DISTRIBUTION PANELS

  • We manufacture and Supply Power Distribution Panels to divide Power from Main Panels for Small and Large Outputs as Sub-Panels for a wide variety of Power Loads, Motor Loads, Lighting Loads in Industrial Sheds, Office Complexes, Warehouses, Street Lightings, Outdoor Area Illuminations.
  • Panels for Separate Multiple Sections Monitoring with Emergency Loads, Non-Emergency Loads, UPS Loads, Customized Machine Loads, Data Centre Loads.
  • The Distribution Panels divide and Feed Electrical Power into Subsidiary Circuits and replace regular Standard TPN /SPN DBs wherever customization is required.

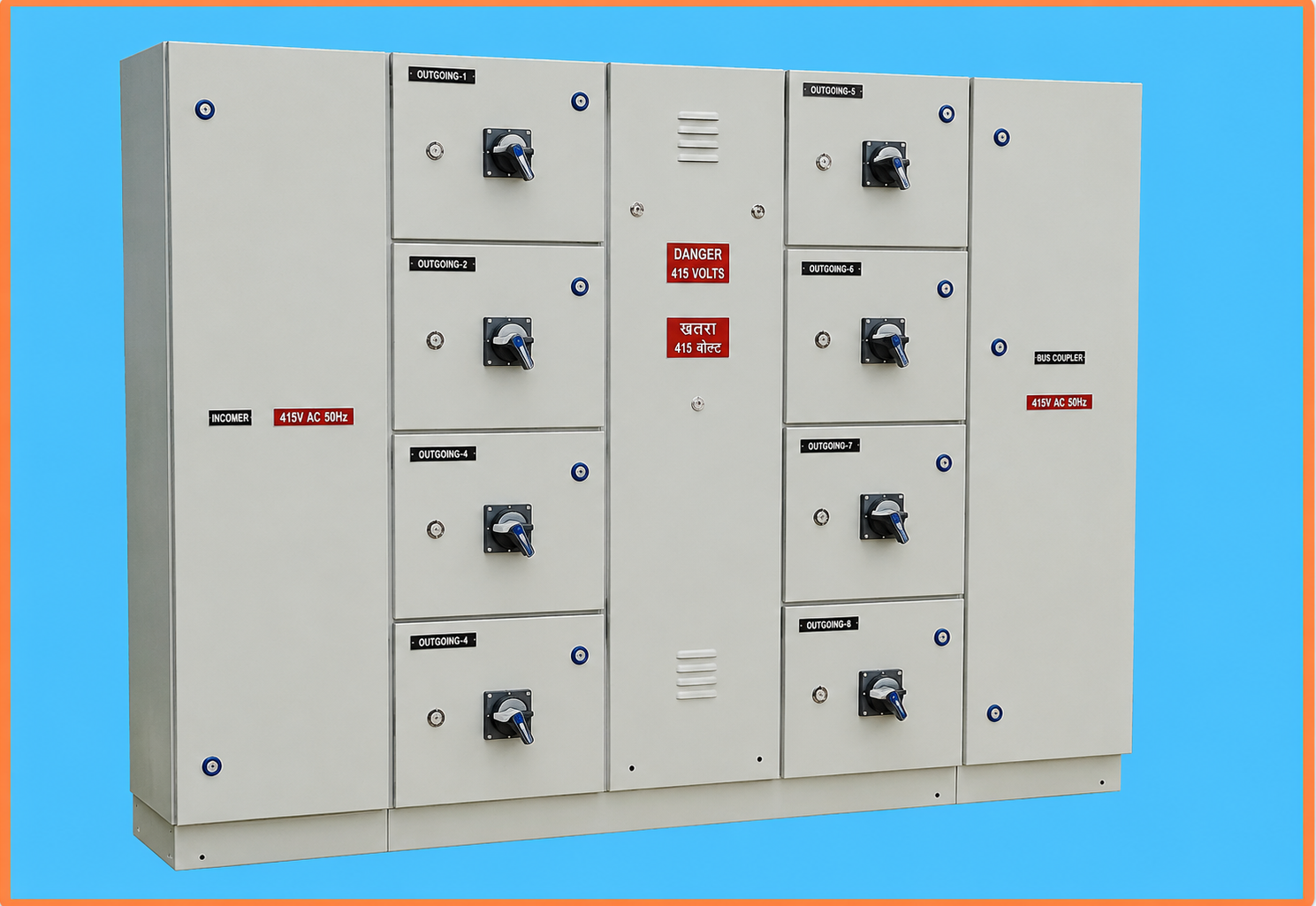

Lighting distribution boards and lighting automation panels
04

LIGHTING DISTRIBUTION BOARDS & LIGHTING AUTOMATION PANELS

  • LIGHTING DISTRIBUTION PANELS for Centralized Control and Integration with TPN/SPN DBs, Switch Boards with Residual Current Circuit Breakers, RCOBs, ELCBs and Upstream Protection for the LED Lighting Systems are Manufactured by us.
  • Lighting Automation Panels with Actuators, Integrated Back-end Control Devices on various Protocols, for installations with SELV, Low Voltage Control & Power Equipment are manufactured by us.
  • We Supply LDBs with Timer Controls, On/Off Controls, Automation Controllers for both Indoor & Outdoor Applications.
  • LDBs in Outdoor Applications especially with Software based control for Large Scale Street Lighting Network on LAN, Wi-Fi, ZigBee, GSM are manufactured by us with Metering Equipment and Data Acquisition & Integrated Dynamic Group Control & Individual Control.
  • Regular External Lighting DBs/ Feeder Pillar Boxes Required in Large & Medium Street Lighting & Flood Lighting Applications are also Manufactured by us.
  • Lighting Automation Panels for Lights Automated Control, ON/OFF Sensor based Switching, Dimming- DALI, 0-10V, 1-10V, PWM Circuits, DMX Control, Color Tuning Circuits, Day-Light Linked Control Circuits, Energy Management & Monitoring.
  • Lighting Automation with Combination of Network Circuitry as required in Automation and with in-built UPS Connectivity are Custom Manufactured by us.

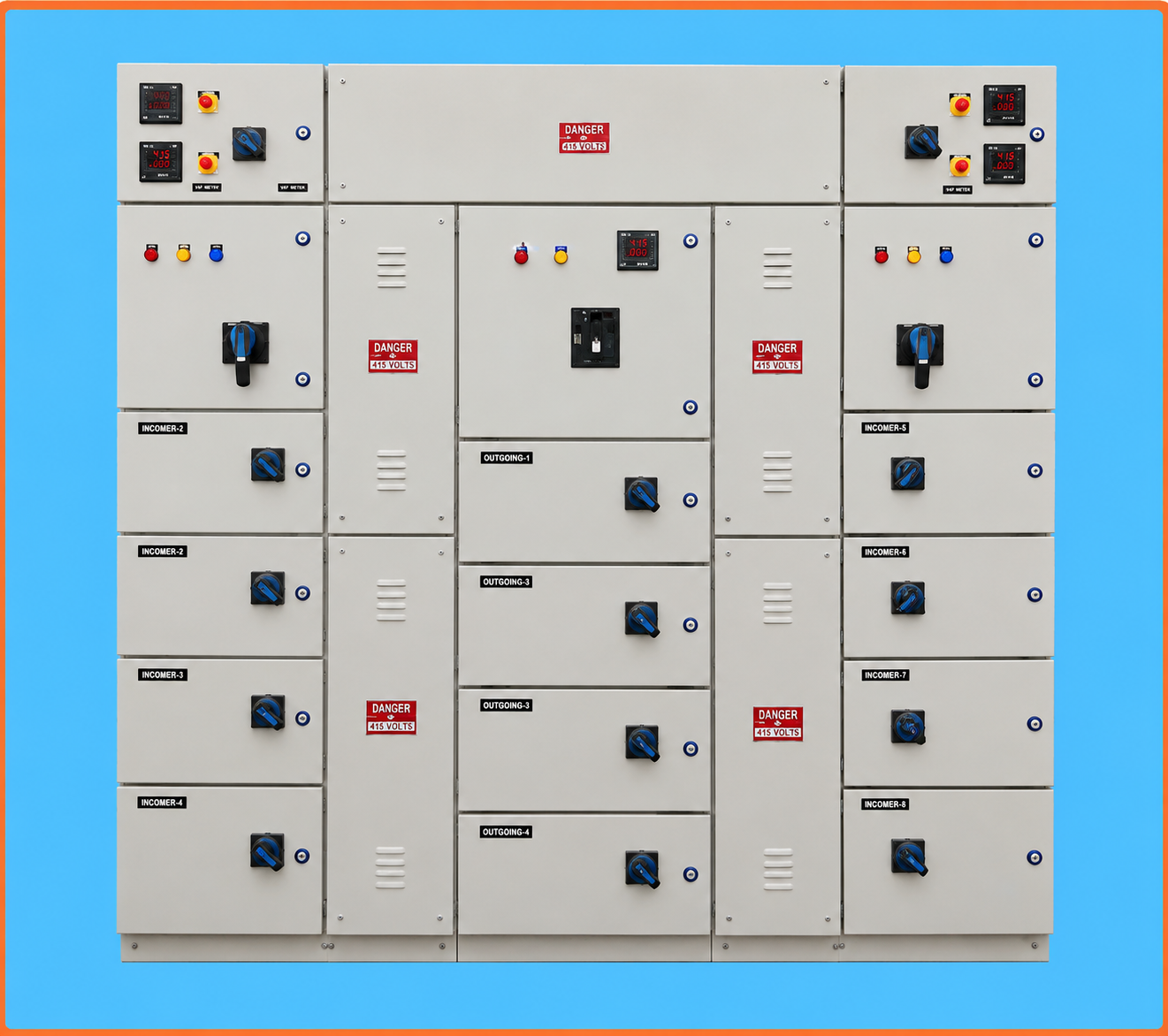

Control and automation panels
05

CONTROL PANELS & AUTOMATION PANELS

  • We Manufacture and Supply Control Desk Panels, MIMIC Panels to Control Individual Machinery and are Connected to MCC Panels to provide Manual and Automated Control with Feedback Mechanism.
  • We also Manufacture PLC based Process Automation Panels, Programmable PLC based Automation for Electric Data Monitoring for various Parameters and Control Automation across a variety of Industry Verticals.
  • Customized Panels for Home Automation with Actuators, Low Voltage Power Devices on various Protocols for Air-Conditioning, Curtain Control, Security & Surveillance, Energy Monitoring, Lighting, Music Systems along with Network Devices and Uninterrupted Power Supply Back-up Systems are Custom Manufactured as per Individual Needs.

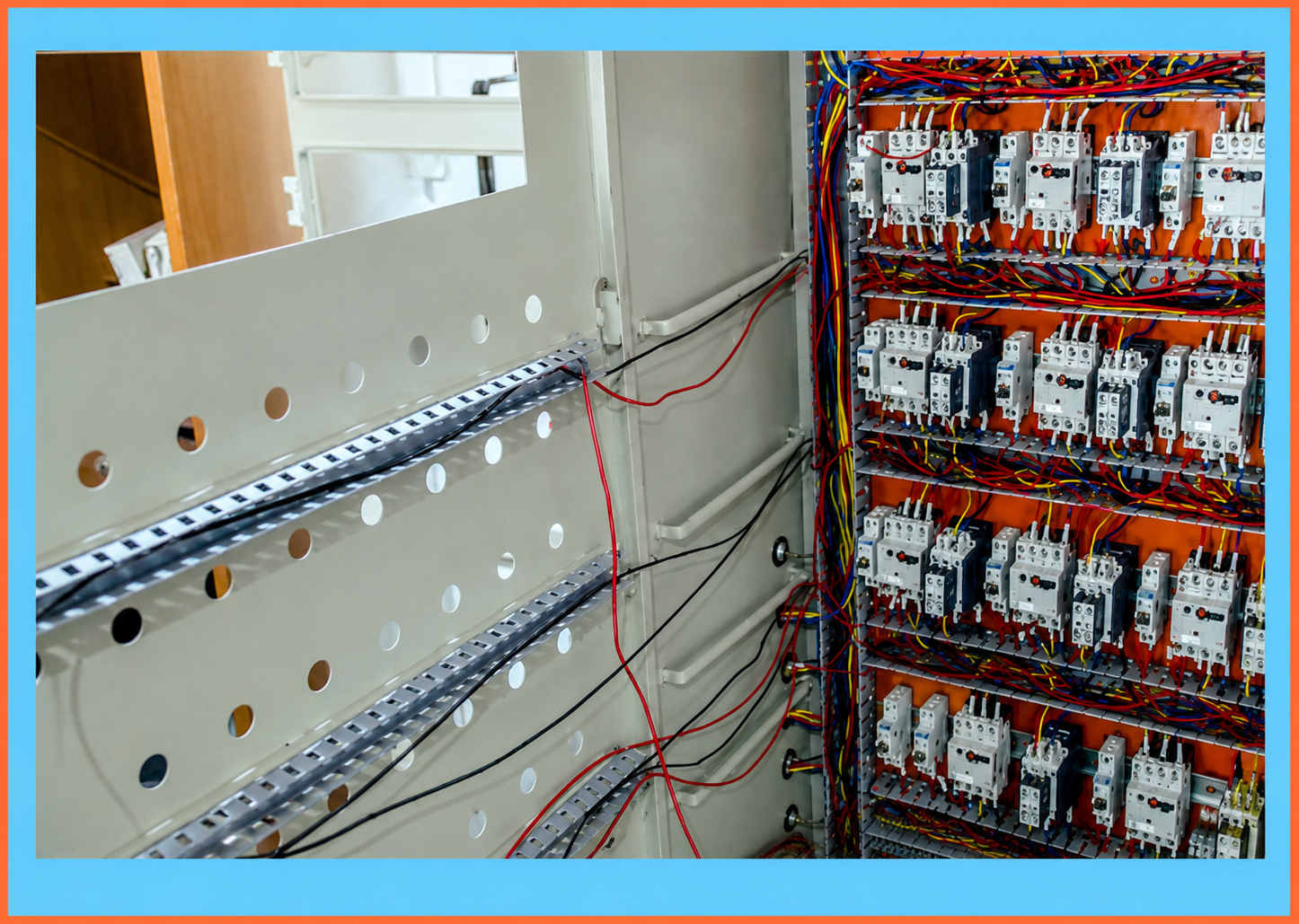

VFD control panel interior
06

VFD PANELS

  • AC DRIVE Panels for various Process Industries with VFD, line reactors, circuit breakers, harmonic filters, a cooling unit, some motor starters, and a bypass are manufactured by us.
  • VFD control panels with different ratings from NEMA, Safety and regulations like UL 508A certification for all types of simple and complex processes and industrial equipment can be supplied.
  • Every motor has varying frequency and voltage; hence they need a separate control panel that will effectively monitor and control them. A VFD control panel brings together or combines motor control devices and circuit protection devices in an enclosure. This control panel also offers protection to these devices from moisture, corrosion, dust, and other damaging factors.

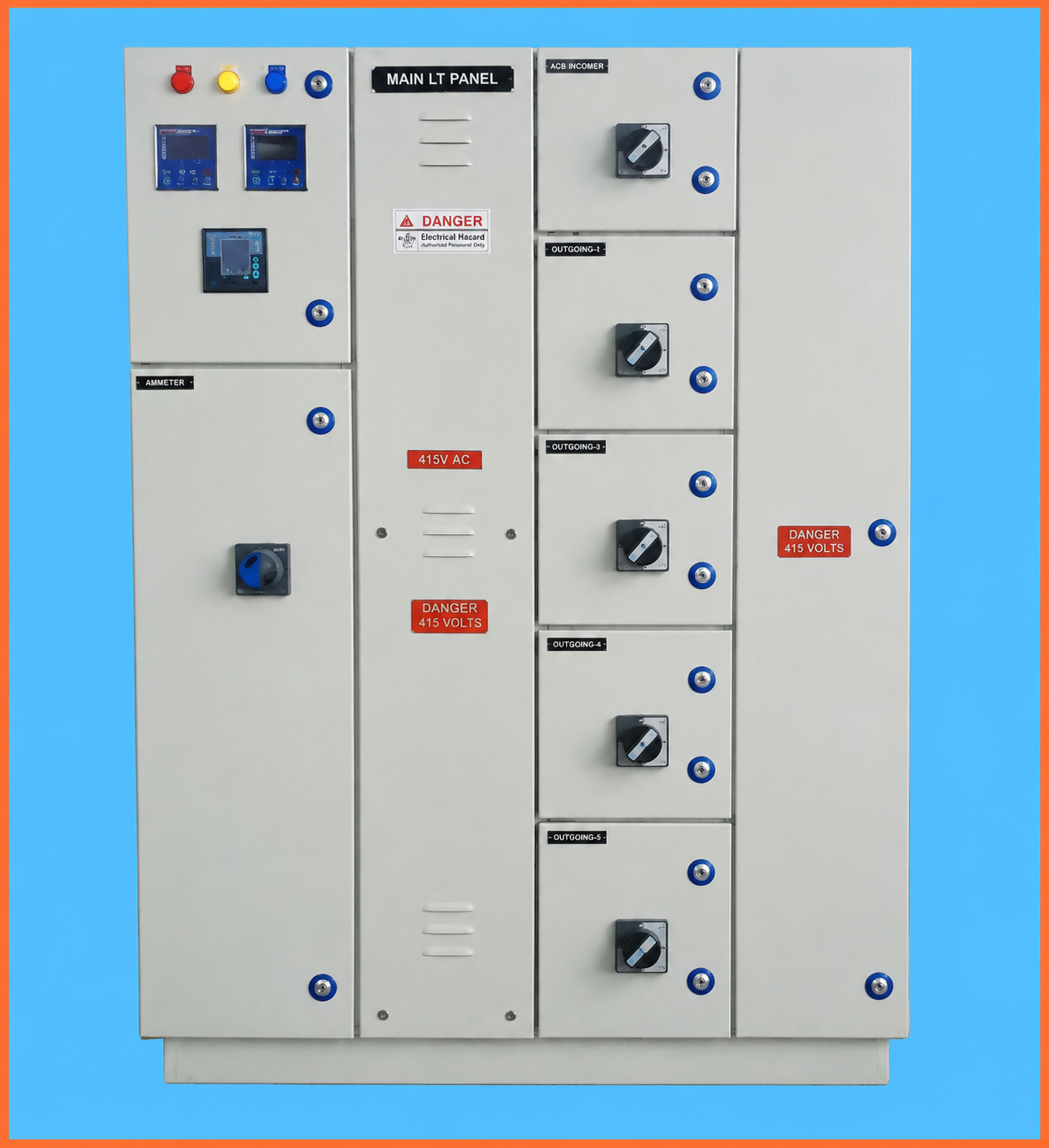

UPS panel
07

UPS PANELS

  • UPS which stands for Uninterruptible Power Supply is a device that provides backup power to electrical systems during power outages or fluctuations. In the absence of primary mode or when the power is switched off, a UPS power supply system with an inbuilt battery uses the battery as a power source.
  • We Manufacture Small and Big Panels which take EB Power from System and feed into Battery Based UPS Input and Draw the Stored Power as Output and feed the Maintained Emergency Circuits.
  • We Manufacture Customized UPS Panels for 1-Phase and 3-Phase UPS Devices with 1-Ph Input and 1-Ph Output; 3-Ph Input and 3-Ph Output; 3-Ph Input 1-Ph Output and Combination of UPS Devices for UPS Feeds into different type of UPS Loads.
  • Utilizing Customized UPS Panels in the System prevents and Avoids Confusion to the End User as well as Electrician Personnel while Operationalising UPS & Inverter Circuits with Separate Neutrals and Earthings, requiring care and precision in Electric Circuit Installations.
  • UPS and Inverter Panels are a must for Lighting Circuits, Large Scale Computer Systems, Electronic Circuits Viz. CCTV, Network Devices and are also Supplied with Spare Starters, Third Harmonic Distortion Cut-Off Devices and are made available for all types of UPS systems Staridby (offline), Line-interactive, and Online double conversion.
Motor control centre panels
08

MOTOR CONTROL CENTRE PANELS

  • Motor Control Centres in Industrial Applications with Electric Drive Mechanism require in-built On/Off Push-Button Controls for DOL Starting, Star –Delta Starting, Automation with PLCs, VFDs, Simple Contactor-Relay Applications with Required rating of Fuses, Circuit Breakers, and Powercontact.
  • We manufacture MCC Panels suitable for Various Industries as mentioned above for 3-Phase,415V; 1-Phase 220/230V and in Combinations of the same for Indoor and Outdoor Applications along with Capacitor Corrections for Improved Power Factor.
  • Motor controls for manual or automatic methods for starting, stopping, controlling speed, reversing, and protecting a motor. These controls are achieved using a variety of circuits, connections and sensors. Our MCC Panels are Appropriately Designed for controlling such Group of Motors.
  • Motor Control Centres many a Times require Mimic of Process Flow with Indicators, Automation with PLCs, Logic Controllers and Additional Protection with Emergency On/Off. We Manufacture such Panels and can share required know-how for the same.
  • Speed Control Drives in Process Industries under a variety of Applications like Controlling Conveyors, Packaging, Sieving, Series of Feed Pumps require VFD Control with Single Phasing Preventive Protection Circuits. We manufacture such VFD Control panels as per Industry Requirements.
  • Energy Efficient Design and reduction of Reactive Power from the system is in-built into the MCC Panels as necessary.

IN-HOUSE CAPABILITY

In-House Manufacturing Infrastructure

Our Company Has the state-of-the Art Knowhow and In-House Skilled Personnel and Equipment for Design and Assembling of the Panel Box as per Switchgear Mounting Requirements. We also have our Team of Bus Bar Experts to Assemble the Switchgear Mounting and Installation of Aluminium and Copper Bus Bars as maybe required. We also have our Control Wiring Experts to Execute Control Wiring Requirements for Metering, Automatic ATYS Changeovers, Bus Couplers, In-built Protection wiring for various Electric Controls for Shunt Trip, Single Phase Preventions, Earth Leakage Relays, Auto-Tripping for Over Load, Installation of Auto Power Factor Correction Relays for Capacitor Banks, VCB Installations, Transformer OLTC Connections etc..

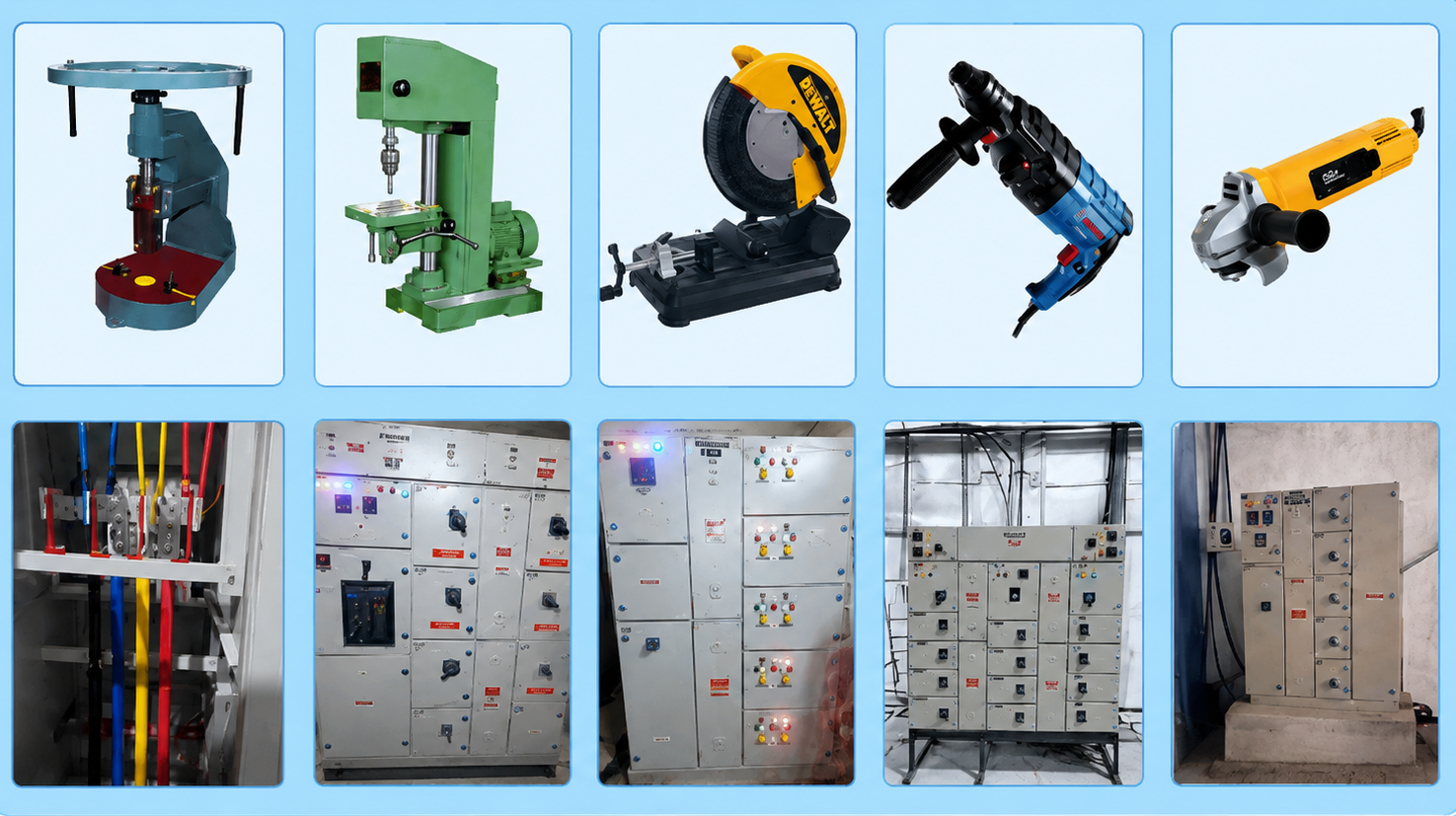

Manufacturing tools and panel infrastructure from the brochure

PROJECT EXPERIENCE

Major Clients & Panel Supply Record

S.NoMonth, YearMajor ClientsLocationType of Panels SuppliedQuantityOrder Value
1October 2010BrahmakumarisHyderabad630A Main Panel with Multiple COS1Rs. Seven Lakhs
2September 2011Cherlapally Gardens, KhammamKhammam315A Main Panel with Multiple COS; APFC Panel2Rs. Nine Lakhs
3July 2011Sai Jewel Function HallVijayawada630A Main Panel with Multiple COS1Rs. Six Lakhs
4September 2011Sri Venkateswara Cloth StoresBidar500A Main PCC Panel with COS; APFC Panel2Rs. Eleven Lakhs
5September 2011KC JewellersHyderabad200A Main PCC Panel1Rs. Three Lakhs
6November 2011Amaravathi JewellersHyderabad200A Main PCC Panel1Rs. Three Lakhs
7June 2012Kalyanalakshmi Shopping MallWarangal400A Main PCC Panel with COS; APFC Panel2Rs. Nine Lakhs
8May 2013Kamal Wedding MallKarimnagar400A Main PCC Panel with COS; APFC Panel2Rs. Eleven Lakhs
9July 2013Kamal Wedding Mall -Mens WearKarimnagar315A Main PCC Panel with COS; APFC Panel2Rs. Eleven Lakhs
10September 2014Shringar Fashion JewelleryHyderabad400A Main PCC Panel with COS; 265KVAR APFC Panel2Rs. Eleven Lakhs
11May 2019The Hidden CastleSiddipet Mandal250A Main PCC Panel with COS1Rs. Four Lakhs
12October 2023Laminate HUBShamshabad160A Main PCC Panel with COS1Rs. Two Lakhs
13November 2023Tunav Foods MD ResidenceHyderabadControl and Automation Panel1Rs. Two Lakhs
14August 2024Ratnadeep Retail Pvt. Ltd. - DCMedchal, Hyderabad1250A ACB Main PCC Panel; 365 KVAR APFC Panel; 250A F & V Panel; 400A FMCG Panel; 630A Grocery Panel; 200A NM Panel; 250A External Panel-1; 250A External Panel-28Rs. Thirty Six Lakhs
15August 2025 - October 2025Sri Aditya Industrial Logistics Parks Pvt. LtdBasavapur, Medchal, Hyderabad800A ACB Main PCC Panel; 315 KVAR APFC Panel; 400A Common Service Panel with ATYS; 400A Ware House Panel-1 with ATYs; 630A Ware House Panel-2 with ATYs; Dock Panel -1; Dock Panel -2; External Panel8Rs. Thirty One Lakhs
16June 2026ACH Mech Sales Pvt. Ltd.Hyderabad160A Main Panel with ATYs & Multiple COS; 67 KVAR APFC Panel2Rs. Six Lakhs

SOURCE DESIGN

Brochure-style visual reference

The original four brochure pages are retained below so the static site keeps the source design available alongside the responsive web presentation.

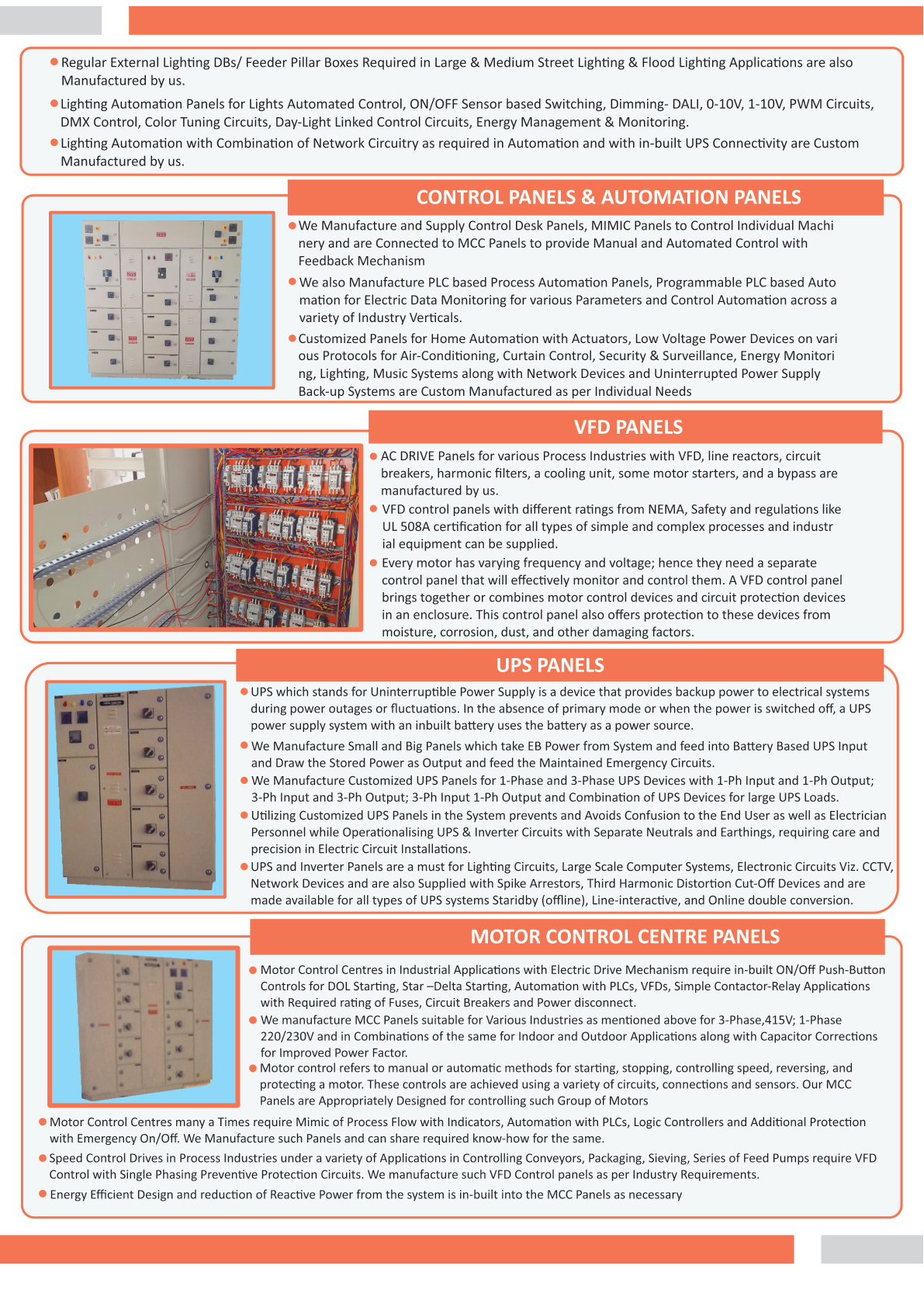

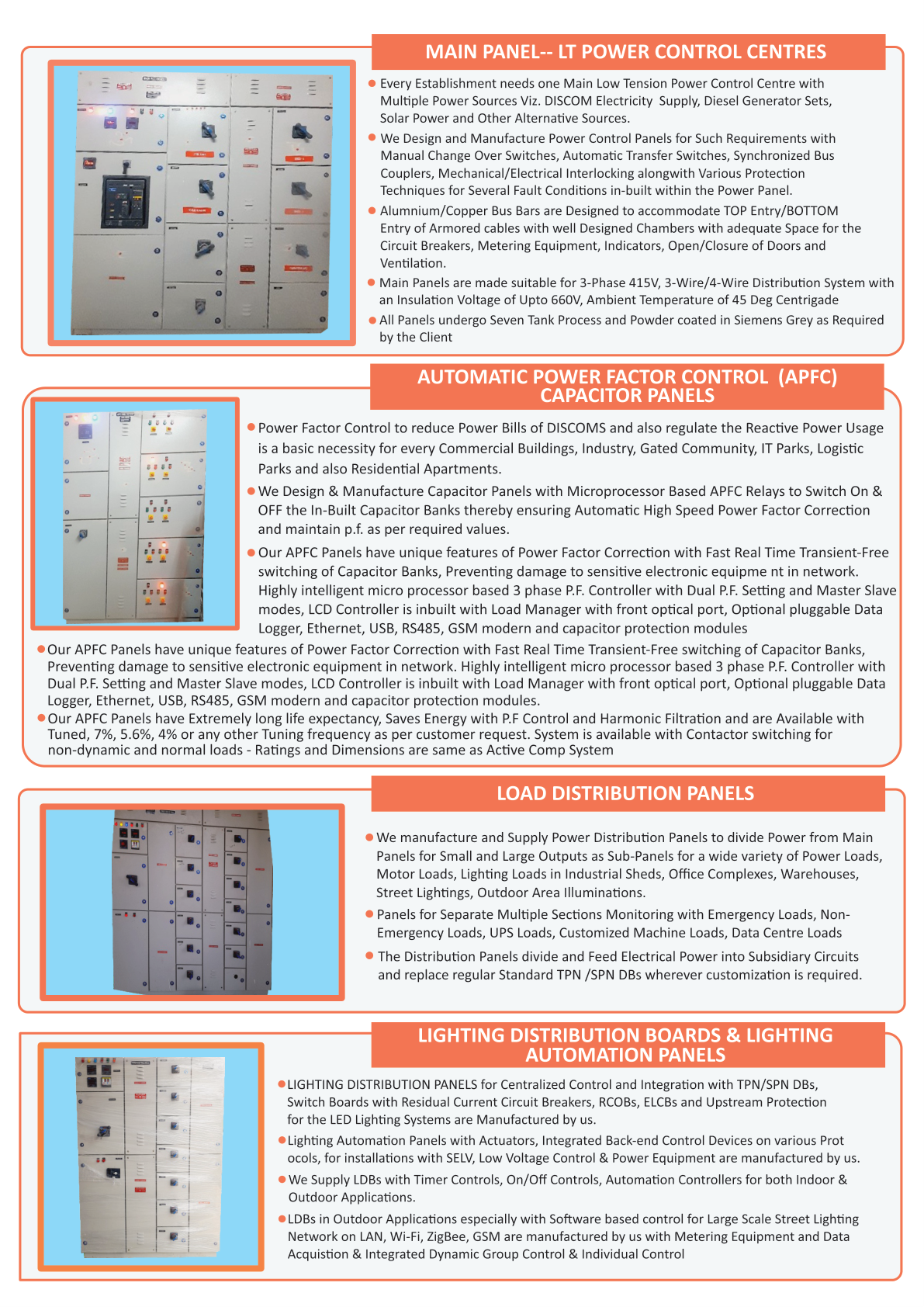

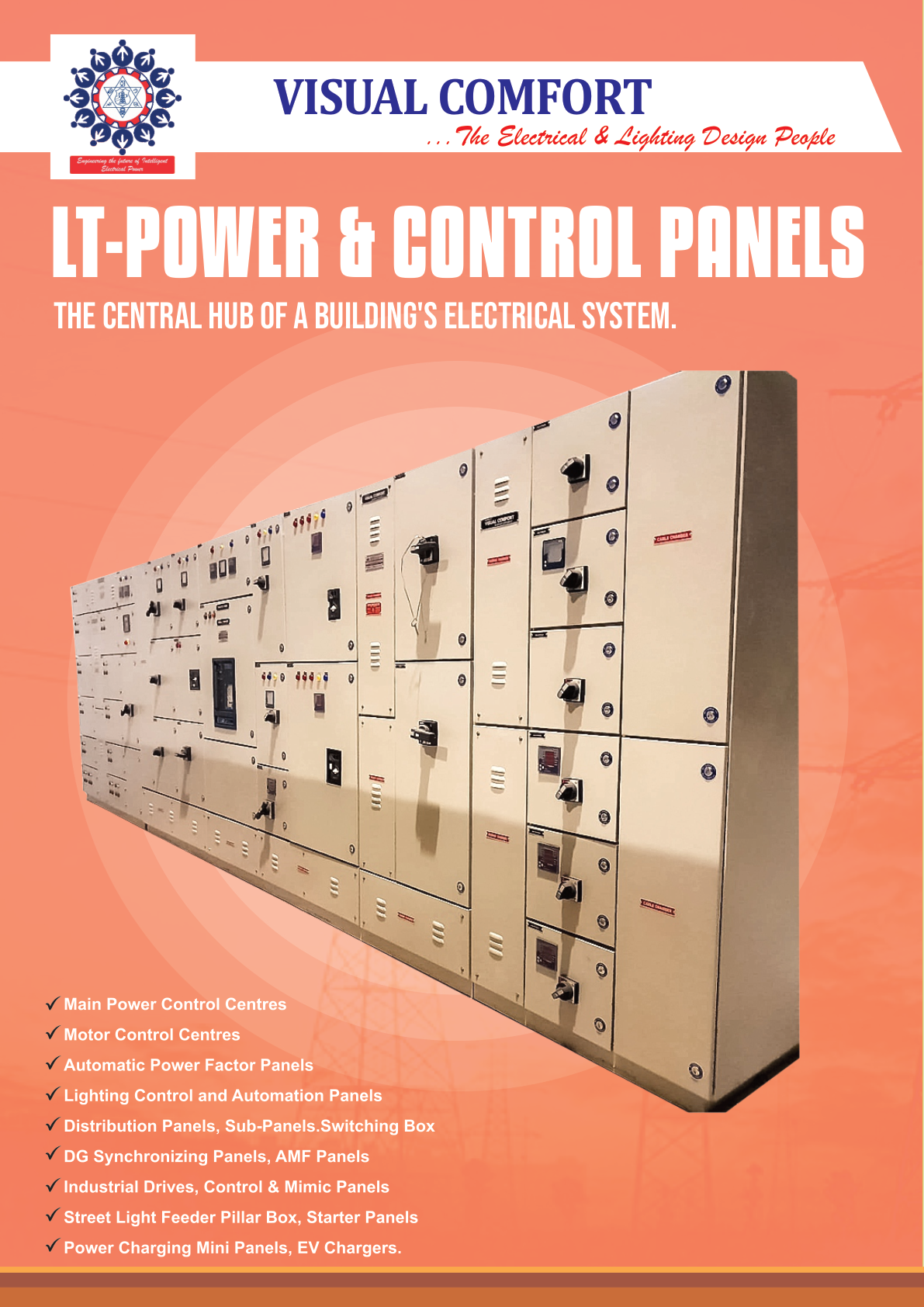

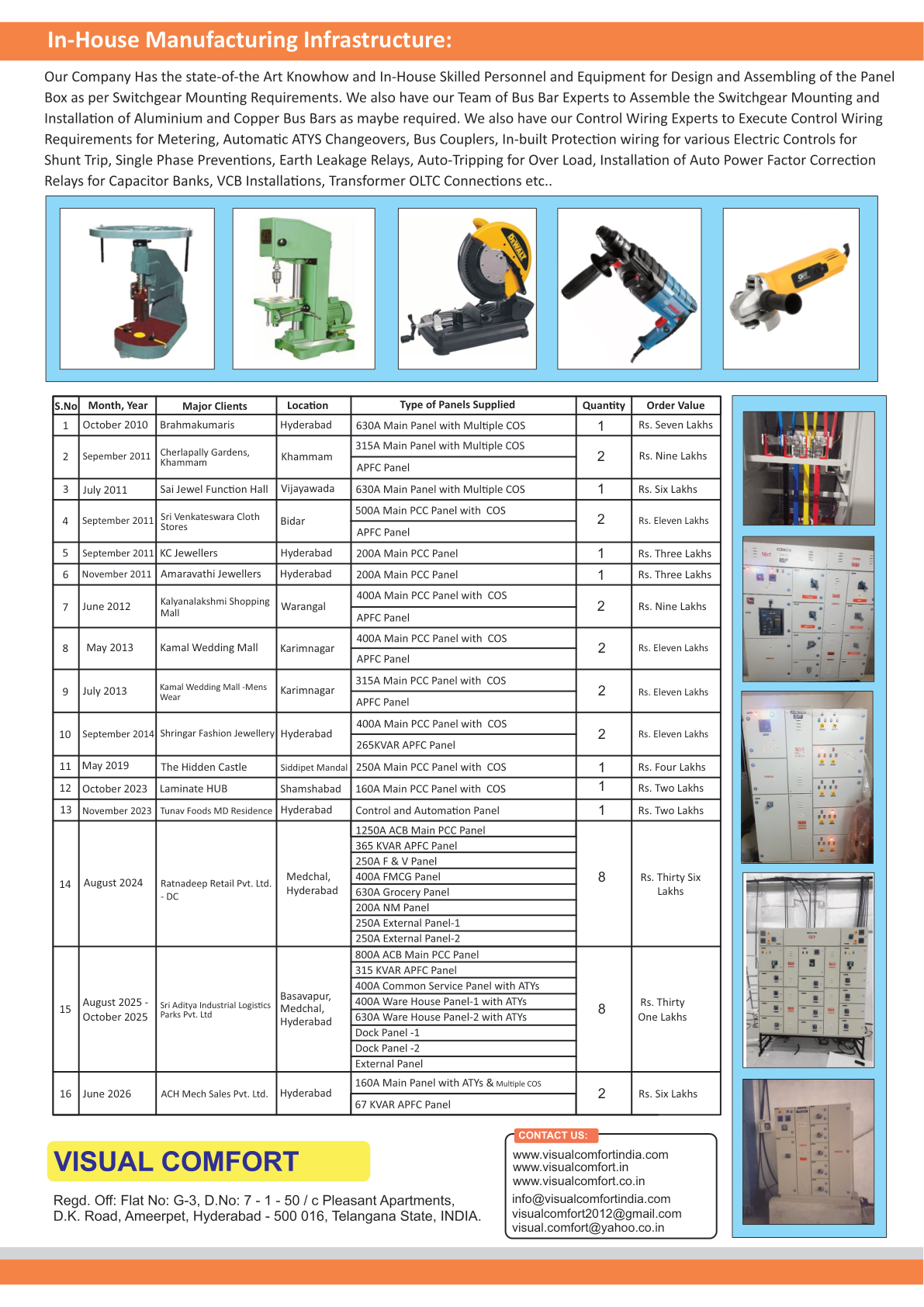

Original brochure page 1 Original brochure page 2 Original brochure page 3 Original brochure page 4
